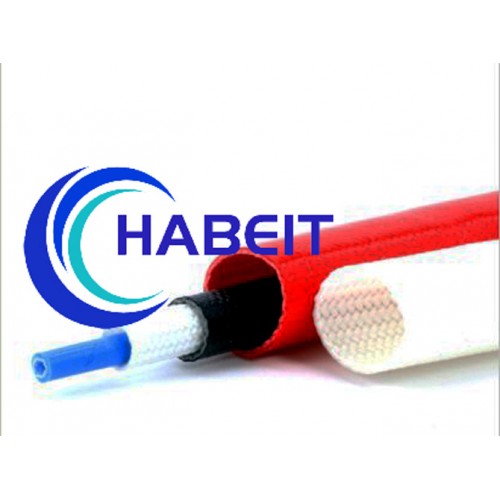

HB-SRG-W
Silicone rubber braided tube General insulation protection for various household appliances, lighting fixtures, machines, electronic tools, etc.
Operating temperature: -55 ℃ to 200 ℃
Colors: black, white, yellow, red, blue, green
Packing: spool and slice
| Technical Data | |
| Property | Stantard |
| Temperature | -10℃~+200℃ |
| Temperature Endurance | 200℃±2℃*168h>1-2 Primary voltage value |
| Thermal aging | 260℃*6h、No Cracking |
| Cold Bending Test | No Cracking |
| Flammablity | Self-extinguish within 30s |
| Volume resistivity | ≥1011 Ω·cm |
| Submerge Water Test | Pass |
| ID | Internal Diameter mm | Average Wall Thickness mm |
|
| Size | Tolerance | ||
| HB-SRG-W-1,0~2,5 | 1,0~2,5 | 0,20±0,00 | 0,50±0,05 |
| HB-SRG-W-3,0~5,5 | 3,0~5,5 | 0,20±0,00 | 0,50±0,05 |
| HB-SRG-W-6,0~7,0 | 6,0~7,0 | 0,20±0,00 | 0,60±0,05 |
| HB-SRG-W-8,0~9,0 | 8,0~9,0 | 0,30±0,00 | 0,80±0,05 |
| HB-SRG-W-10,0~12,0 | 10,0~12,0 | 0,30±0,00 | 1,10±0,05 |
